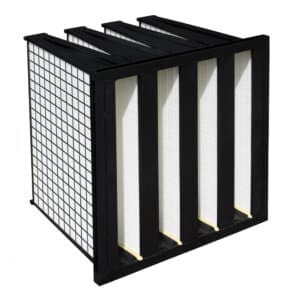

RPV XL

Application

Ideal for gas turbine air intake systems.

Application areas

Terminal filtration in air treatment plants

  • Compact and economical
  • Very large filtration surface
  • High efficiency
  • Large dust retention capacity
  • Tested for food contact
  • According to CE 1935/2004
  • Certified inert to microbial growth (ISO 846-VDI 6022)
  • Filtration area: 32m²
Certificates

General Characteristics

Filtration class EN779:2012: M6-F9
Media: Glass fiber mini-pleat paper
Frame: Polystyrene
Lut: Polyurethane
Separators: Hot-melt wire
Final pressure drop according to EN 13053: initial pressure drop + 100 Pa or initial pressure drop x3 (whichever is smaller).
Maximum continuous service temperature: 70°C
Relative humidity: 100%
Contact our expert

  • RPV XL

    Illustration variation

  • ePM10 60% ISO 16890 - (M6)

    • RPV65-6XL

    • Base A (mm)

      592

    • Height B (mm)

      592

    • Depth C (mm)

      440

    • Surface (m2)

      32

    • Airflow (m3/h)/Delta P (Pa)

      3400 / 65

    • Energy consumption (kWh/year)

      806

    • Energy class**

      C

    • RPV65-5XL

    • Base A (mm)

      592

    • Height B (mm)

      287

    • Depth C (mm)

      440

    • Surface (m2)

      27

    • Airflow (m3/h)/Delta P (Pa)

      3500 / 65

    • Energy consumption (kWh/year)

      -

    • Energy class**

    • RPV65-3XL

    • Base A (mm)

      592

    • Height B (mm)

      287

    • Depth C (mm)

      440

    • Surface (m2)

      16

    • Airflow (m3/h)/Delta P (Pa)

      2125 / 65

    • Energy consumption (kWh/year)

      -

    • Energy class**

  • ePM1 55% ISO 16890 - (F7)

    • RPV85-6XL

    • Base A (mm)

      592

    • Height B (mm)

      592

    • Depth C (mm)

      440

    • Surface (m2)

      32

    • Airflow (m3/h)/Delta P (Pa)

      3400 / 72

    • Energy consumption (kWh/year)

      871

    • Energy class**

      A

    • RPV85-5XL

    • Base A (mm)

      592

    • Height B (mm)

      490

    • Depth C (mm)

      440

    • Surface (m2)

      27

    • Airflow (m3/h)/Delta P (Pa)

      3500 / 72

    • Energy consumption (kWh/year)

      -

    • Energy class**

    • RPV85-3XL

    • Base A (mm)

      592592

    • Height B (mm)

      287

    • Depth C (mm)

      440

    • Surface (m2)

      16

    • Airflow (m3/h)/Delta P (Pa)

      2125 / 72

    • Energy consumption (kWh/year)

      -

    • Energy class**

  • ePM1 65% ISO 16890 - (F8)

    • RPV95-6XL

    • Base A (mm)

      592

    • Height B (mm)

      592

    • Depth C (mm)

      440

    • Surface (m2)

      32

    • Airflow (m3/h)/Delta P (Pa)

      3400 / 78

    • Energy consumption (kWh/year)

      946

    • Energy class**

      A

    • RPV95-5XL

    • Base A (mm)

      592

    • Height B (mm)

      490

    • Depth C (mm)

      440

    • Surface (m2)

      27

    • Airflow (m3/h)/Delta P (Pa)

      3500 / 78

    • Energy consumption (kWh/year)

      -

    • Energy class**

    • RPV95-3XL

    • Base A (mm)

      592

    • Height B (mm)

      287

    • Depth C (mm)

      440

    • Surface (m2)

      16

    • Airflow (m3/h)/Delta P (Pa)

      2125 / 78

    • Energy consumption (kWh/year)

      -

    • Energy class**

  • ePM1 85% ISO 16890 - (F9)

    • RPV98-6XL

    • Base A (mm)

      592

    • Height B (mm)

      592

    • Depth C (mm)

      440

    • Surface (m2)

      32

    • Airflow (m3/h)/Delta P (Pa)

      3400 / 97

    • Energy consumption (kWh/year)

      1170

    • Energy class**

      A

    • RPV98-5XL

    • Base A (mm)

      592

    • Height B (mm)

      490

    • Depth C (mm)

      440

    • Surface (m2)

      27

    • Airflow (m3/h)/Delta P (Pa)

      3500 / 97

    • Energy consumption (kWh/year)

      -

    • Energy class**

    • RPV98-3XL

    • Base A (mm)

      592

    • Height B (mm)

      287

    • Depth C (mm)

      440

    • Surface (m2)

      16

    • Airflow (m3/h)/Delta P (Pa)

      2125 / 97

    • Energy consumption (kWh/year)

      -

    • Energy class**

* Energy consumption, kWh/year: calculated according to Eurovent Guideline 4/21-2018 | ** Energy class: according to Eurovent RS4/C/001-2019 | *** Energy class: according to Eurovent RS4/C/001-2015
