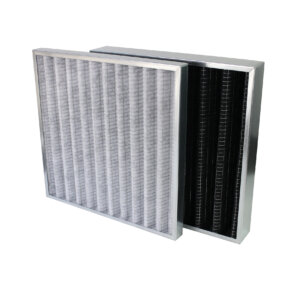

Deltricarb - FZ Galva

Application

Odor removal and purification of gaseous pollutants

Application areas

Commercial buildings, industrial premises, etc.

  • Combined particle/molecule filtration
  • Low pressure drop
  • All dimensions
  • Can replace your existing FZ

General Characteristics

Media: G4 impregnated with activated carbon
Structure: galvanized or plastic
Temperature: Max 40°C
Relative humidity: 70%
Contact our expert

  • Deltricarb - FZ Galva

    Illustration variation

  • G4

    • FZGA

    • Base A (mm)

      592

    • Height B (mm)

      592

    • Thickness C (mm)

      48

    • Surface (m2)

      1,3

    • Airflow (m3/h)/Delta P (Pa)

      3000 / 125

    • FZGA

    • Base A (mm)

      592

    • Height B (mm)

      490

    • Thickness C (mm)

      48

    • Surface (m2)

      1

    • Airflow (m3/h)/Delta P (Pa)

      2480 / 125

    • FZGA

    • Base A (mm)

      592

    • Height B (mm)

      287

    • Thickness C (mm)

      48

    • Surface (m2)

      0,7

    • Airflow (m3/h)/Delta P (Pa)

      1500 / 125

    • FZGA

    • Base A (mm)

      592

    • Height B (mm)

      592

    • Thickness C (mm)

      96

    • Surface (m2)

      2,2

    • Airflow (m3/h)/Delta P (Pa)

      4300 / 95

    • FZGA

    • Base A (mm)

      592

    • Height B (mm)

      490

    • Thickness C (mm)

      96

    • Surface (m2)

      1,9

    • Airflow (m3/h)/Delta P (Pa)

      2800 / 95

    • FZGA

    • Base A (mm)

      592

    • Height B (mm)

      287

    • Thickness C (mm)

      96

    • Surface (m2)

      1,1

    • Airflow (m3/h)/Delta P (Pa)

      1700 / 195
