DS (PPL/PPS - PFL - PTL)

Application

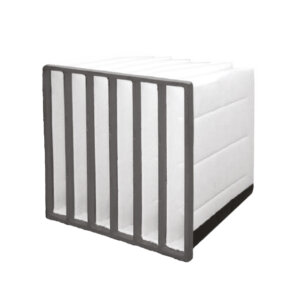

The DS (PPL/PPS - PFL - PTL) rigid pocket filters are highly effective prefilters dedicated to air intake systems in gas turbines.

Application areas

DS (PPL/PPS – PFL – PTL) rigid pocket filters protect downstream systems and equipment (including final filters) from airborne particulate pollutants, as well as snow, fog, and mist.

  • Air filtration and water coalescence in a single filter
  • Water-tight pockets integrated in a polyurethane frame resistant to bursting >> 6000 Pa
  • Sealed pocket bottoms: water coalescence in pockets, upstream filter drainage
  • Self-supporting welded pockets >> Elimination of release risks
  • Aerodynamic stabilization cuffs (Diamond Spacer)
  • 100% incinerable
Certificates

General Characteristics

Filtration class according to standard 29461-1: T4 - T5 - T6
Media: Synthetic with hydrophobic treatment
Frame: Polyurethane (SECURE)
Joint: Polyurethane Clean Air Side
Final pressure drop according to EN 13053: initial pressure drop + 100 Pa or initial pressure drop x3 (whichever is smaller).
Continuous service temperature: 70°C
Relative humidity: 100%
Contact our expert

  • DS (PPL/PPS - PFL - PTL)

    Illustration variation

  • ISO COARSE 80% ISO 16890 - (T4)

    • PPL40-DS

    • Base A (mm)

      592

    • Height B (mm)

      592

    • Depth C (mm)

      625

    • Pockets

      6

    • Surface (m2)

      4,2

    • Airflow (m3/h)/Delta P (Pa)

      4250 / 55

    • Airflow (m3/h)/Delta P (Pa)

      3400 / 35

    • Energy consumption (kWh/year)*

      -

    • Energy class**

      -

    • PPL40-DS

    • Base A (mm)

      490

    • Height B (mm)

      592

    • Depth C (mm)

      625

    • Pockets

      5

    • Surface (m2)

      3,5

    • Airflow (m3/h)/Delta P (Pa)

      3500 / 55

    • Airflow (m3/h)/Delta P (Pa)

      2800 / 35

    • Energy consumption (kWh/year)*

      -

    • Energy class**

      -

    • PPL40-DS

    • Base A (mm)

      287

    • Height B (mm)

      592

    • Depth C (mm)

      625

    • Pockets

      3

    • Surface (m2)

      2,1

    • Airflow (m3/h)/Delta P (Pa)

      2125 / 55

    • Airflow (m3/h)/Delta P (Pa)

      1700 / 35

    • Energy consumption (kWh/year)*

      -

    • Energy class**

      -

  • ISO COARSE 65% ISO 16890 - (T4)

    • PPS40-DS

    • Base A (mm)

      592

    • Height B (mm)

      592

    • Depth C (mm)

      330

    • Pockets

      6

    • Surface (m2)

      2,1

    • Airflow (m3/h)/Delta P (Pa)

      4250 / 70

    • Airflow (m3/h)/Delta P (Pa)

      3400 / 50

    • Energy consumption (kWh/year)*

      -

    • Energy class**

      -

    • PPS40-DS

    • Base A (mm)

      490

    • Height B (mm)

      592

    • Depth C (mm)

      330

    • Pockets

      5

    • Surface (m2)

      1,8

    • Airflow (m3/h)/Delta P (Pa)

      3500 / 70

    • Airflow (m3/h)/Delta P (Pa)

      2800 / 50

    • Energy consumption (kWh/year)*

      -

    • Energy class**

      -

    • PPS40-DS

    • Base A (mm)

      287

    • Height B (mm)

      592

    • Depth C (mm)

      330

    • Pockets

      3

    • Surface (m2)

      1

    • Airflow (m3/h)/Delta P (Pa)

      2125 / 70

    • Airflow (m3/h)/Delta P (Pa)

      1700 / 50

    • Energy consumption (kWh/year)*

      -

    • Energy class**

      -

  • ePM10 50% ISO 16890 - (T5)

    • PFL50-DS

    • Base A (mm)

      592

    • Height B (mm)

      592

    • Depth C (mm)

      625

    • Pockets

      6

    • Surface (m2)

      4,39

    • Airflow (m3/h)/Delta P (Pa)

      3400 / 45

    • Airflow (m3/h)/Delta P (Pa)

      -

    • Energy consumption (kWh/year)*

      580

    • Energy class**

      B

    • PFL50-DS

    • Base A (mm)

      287

    • Height B (mm)

      592

    • Depth C (mm)

      625

    • Pockets

      3

    • Surface (m2)

      2,2

    • Airflow (m3/h)/Delta P (Pa)

      1700 / 45

    • Airflow (m3/h)/Delta P (Pa)

      -

    • Energy consumption (kWh/year)*

      -

    • Energy class**

      -

  • ePM10 55% ISO 16890 - (T6)

    • PTL65-DS

    • Base A (mm)

      592

    • Height B (mm)

      592

    • Depth C (mm)

      625

    • Pockets

      8

    • Surface (m2)

      5,86

    • Airflow (m3/h)/Delta P (Pa)

      3400 / 58

    • Airflow (m3/h)/Delta P (Pa)

      -

    • Energy consumption (kWh/year)*

      709

    • Energy class**

      C

    • PTL65-DS

    • Base A (mm)

      287

    • Height B (mm)

      592

    • Depth C (mm)

      625

    • Pockets

      4

    • Surface (m2)

      2,93

    • Airflow (m3/h)/Delta P (Pa)

      1700 / 58

    • Airflow (m3/h)/Delta P (Pa)

      -

    • Energy consumption (kWh/year)*

      -

    • Energy class**

      -

* Energy consumption, kWh/year: calculated according to Eurovent Guideline 4/21-2018 | ** Energy class: according to Eurovent RS4/C/001-2019 | *** Energy class: according to Eurovent RS4/C/001-2015
